VGA HDMI DVI Adapter Monitor Data Cable 50 / 60 Hz Vertical Frequency Range

Large Image : VGA HDMI DVI Adapter Monitor Data Cable 50 / 60 Hz Vertical Frequency Range

Product Details:

Place of Origin:	China
Brand Name:	KBTech
Certification:	ROHS ,CE,UL
Model Number:	mini dp adapter cable

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	Get lastest price
Packaging Details:	1. one piece in a poly bag;2. 200-250pcs in a export carton
Delivery Time:	7-10days
Payment Terms:	T/T ,Paypal , Western Union
Supply Ability:	5000PCS a week

Contact Now

Detailed Product Description

Length:	25cm Or Custom	Color:	Black,white OR CUSTOM
Use:	HD TV ,COMPUTER ,Monitor	Connector One:	Mini Dp Male
Connector Two:	VGA Female ,HDMI Female ,DVI Female	Core Wire:	Copper
Wire Guage:	30AWG32AWG ,Al Foil ,Braid	Warranty:	1 Year
High Light:	vga monitor cable , video adapter cable

3 in 1 Thunderbolt Mini Displayport DP to VGA HDMI DVI Adapter Cable

for MacBook Pro MacBook Air

Product Description

Product Name: Mini dp to vga hdmi dvi adapter

Color: Polish White/black
Cable Length: Approx. 15cm.
Interface: Thunderbolt/ Mini DisplayPort Male to HDMI + DVI + Displayport Female.
Input Interface: Thunderbolt/ Mini DisplayPort Male 20pin.

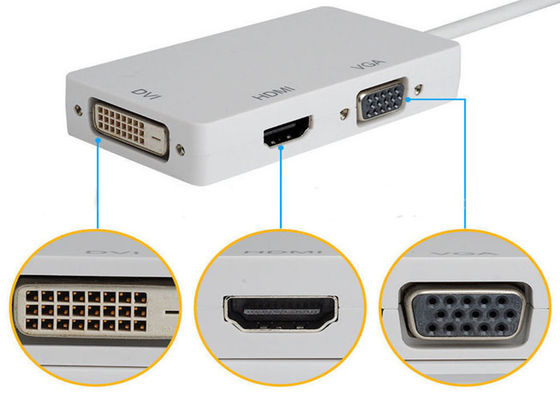

Output Interface: HDMI Female 19 Pin and DVI Female (24+5) and VGA 20 Pin.
HDMI/DVI Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p.
HDMI/DVI Resolution: 1280*1024, 1360*768, 1920*1080, 1920 * 1200.
Operating Humidity: 10% to 85 % RH (Non Condensing )
Compatibiltiy: Apple iMac, Mac Mini, Mac Pro, MacBook Air, MacBook Pro 13 inch, MacBook Pro 15 inch, MacBook Pro 17 inch

Specification

ITEM	Mini dp to vga hdmi dvi adapter
Input Signal:	Mini DisplayPort 1.1a
Output Video	HDMI/DVI/VGA
Input	Mini Display Port Male 20pin
Output	HDMI Female Type A 19pin DVI Female (24+5) VGA Female 15Pin
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	2.25Gbps/225MHz
HDMI/DVI/VGA	480i/480p,576p,720p,1080i/1080p
External Power Supply	No external power needed
Power consumption (Max)	700mW

Feature

100% Brand New, Plug and Play.
Support conversion from Thunderbolt/ DisplayPort signal to DVI/ HDMI/ Displayport signal.
Support Thunderbolt/ DisplayPort highest video resolution 1920*1200.
Support HDMI/ DVI highest video resolution 1920*1080p.
Support HDMI/ DVI 225MHz/ 2.25Gbps per channel (6.75Gbps all channel) bandwidth
Support HDMI/ DVI 12bit per channel (36bit all channel) deep color.
Automatic monitor plug and unplug detect for DVI/ HDMI/ Displayport output.
Down Spread Spectrum Clock (SSC) support.
Powered from Mini DisplayPort source.
Connect your New Gerneration Macbooks/ Macbook Pro/ Macbook air to you display device with HDMI/ DVI/ Displaypor interface.

How to use:

The product is easily and conveniently use, with three output ports:DVI VGA HDMI and a Mini Display Port.And you can use one of them at a time as your demand, when you want to use the DVI output, you just need to connect the DVI devices using a DVI cable. And when you want to use the HDMI output, you just need to connect the
HDMI devices using a HDMI cable. When you want to use the VGA output, you just need yo connect the VGA devices using a VGA cable.The Mini Display Port meed to connect
Mac Book, Mac Book Pro, or Mac Book Air.
